Makes 🢒 Saturn 🢒 2009 🢒 VUE - AWD 🢒 Hybrid 🢒 Hybrid Cooling - HP5 🢒 Generator Control Module Coolant Pump Hose Replacement - Pump to Radiator Inlet

Generator Control Module Coolant Pump Hose Replacement - Pump to Radiator Inlet for Saturn VUE - AWD 2009

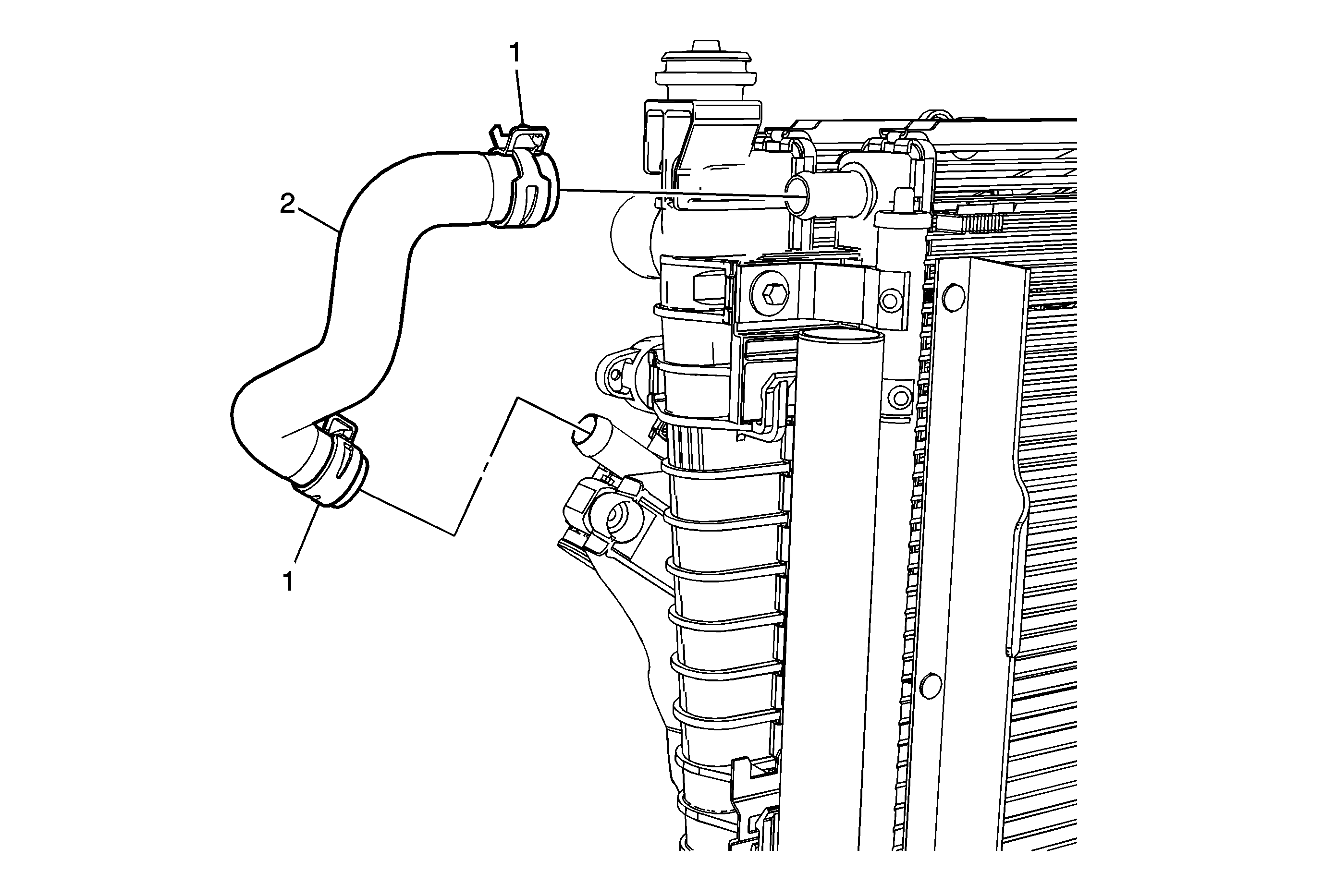

Object Number: 2075836 Size: MF

Callout

Component Name

Preliminary Procedures

  1. Drain the generator control module cooling system. Refer to Generator Control Module Cooling System Draining and Filling
  2. Remove right headlamp. Refer to Headlamp Replacement
  3. Remove the radiator opening upper cover. Refer to Radiator Opening Upper Cover Replacement
  4. Remove the front end guard. Refer to Front End Guard Replacement

1

Generator Control Module Coolant Pump Hose - Pump to Radiator Inlet

Procedure

Reposition the 2 hose clamps using J 38185 Hose Clamp Pliers

Special Tools

J 38185 Hose Clamp Pliers
