Front Differential Drive Pinion Gear Roller Bearing and Lubricant Dam Installation - Torque Dampener Side for Saturn VUE - FWD 2009

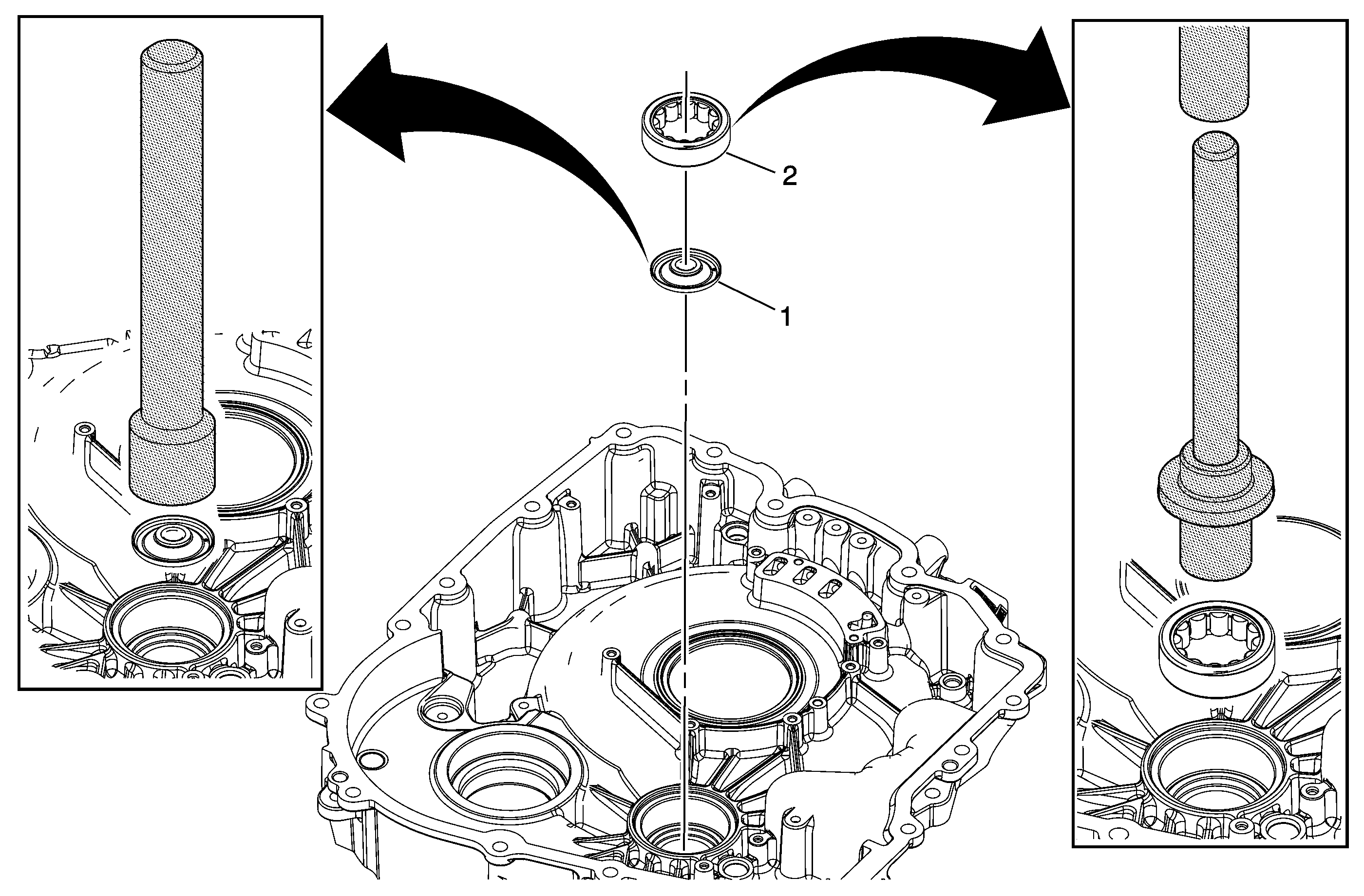

Object Number: 2048983 Size: MF

Callout

Component Name

1

Front Differential Drive Pinion Gear Lube Dam

Special Tools

    • J 8092 Driver Handle or Equivalent
    • J-46630 Lube Dam Installer

For equivalent regional tools, refer to Special Tools.

2

Front Differential Drive Pinion Gear Roller Bearing Assembly

Tip
Use arbor press to aid installation.

Special Tools

    • DT-49229 Transfer Shaft Bearing Installer
    • J 8092 Driver Handle or Equivalent

For equivalent regional tools, refer to Special Tools.
