Makes 🢒 Suzuki 🢒 2007 🢒 XL-7 AWD 🢒 Transmission/Transaxle 🢒 Automatic Transaxle - AF33-5 🢒 Front Differential Assembly Installation

Front Differential Assembly Installation for Suzuki XL-7 AWD 2007

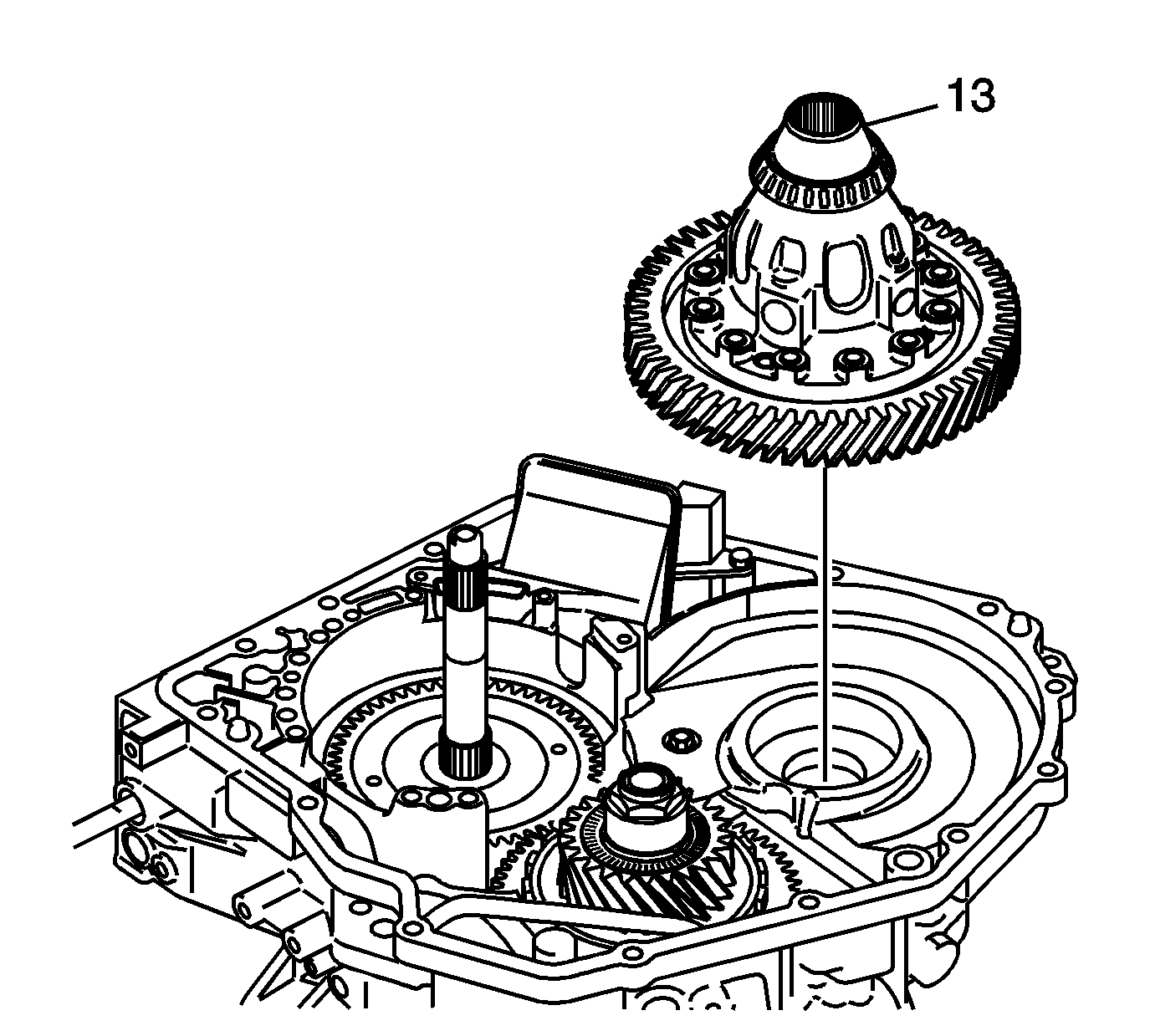

Object Number: 1828041 Size: SH

Install the front differential assembly (13) into the transmission case assembly.
