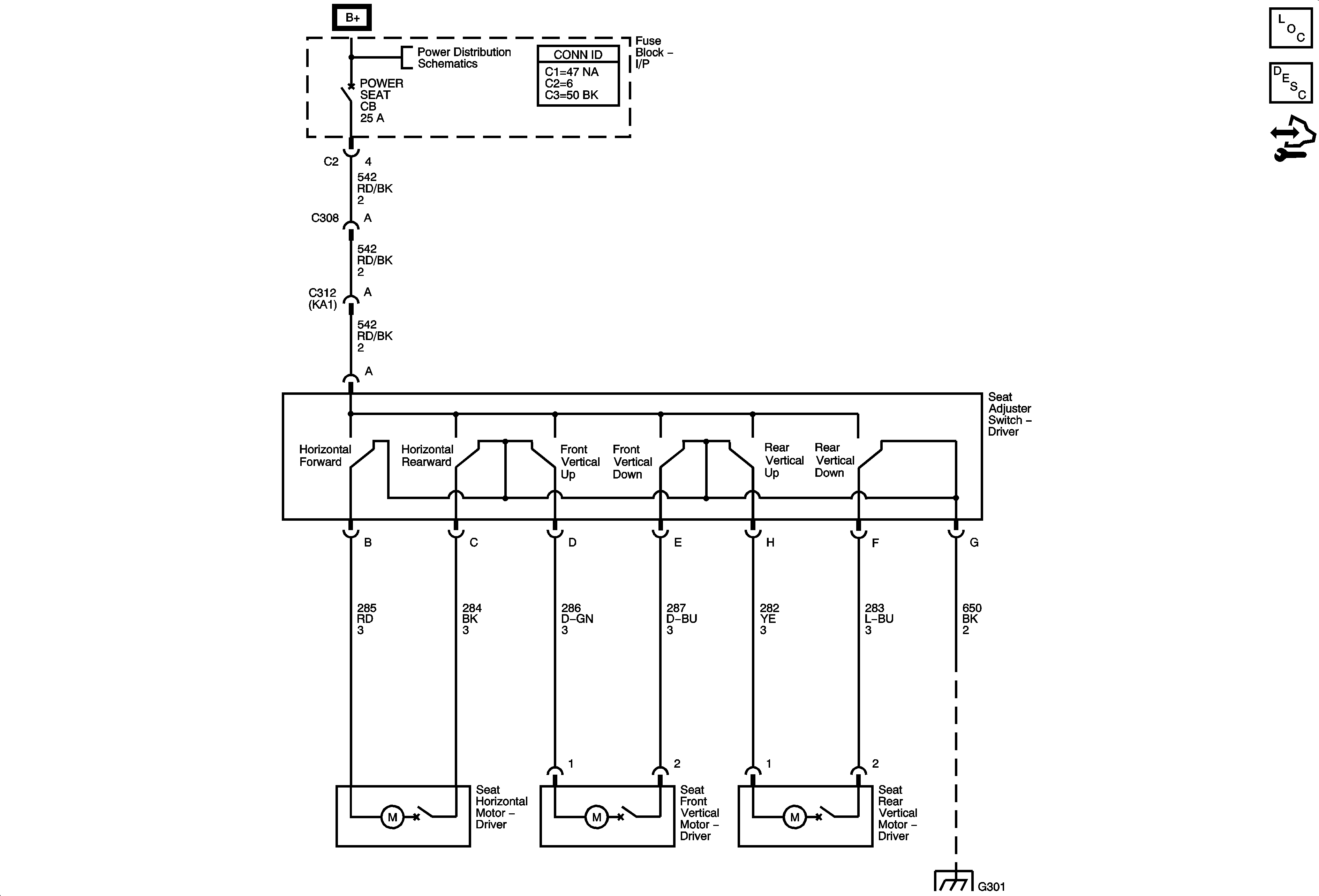

Driver Seat Schematics for Suzuki XL-7 FWD 2007


Object Number: 1861281 Size: FS
Master Electrical Component List
Power Seats System Description and Operation
Control Module References
B+ BUS 1 of 2
G301
