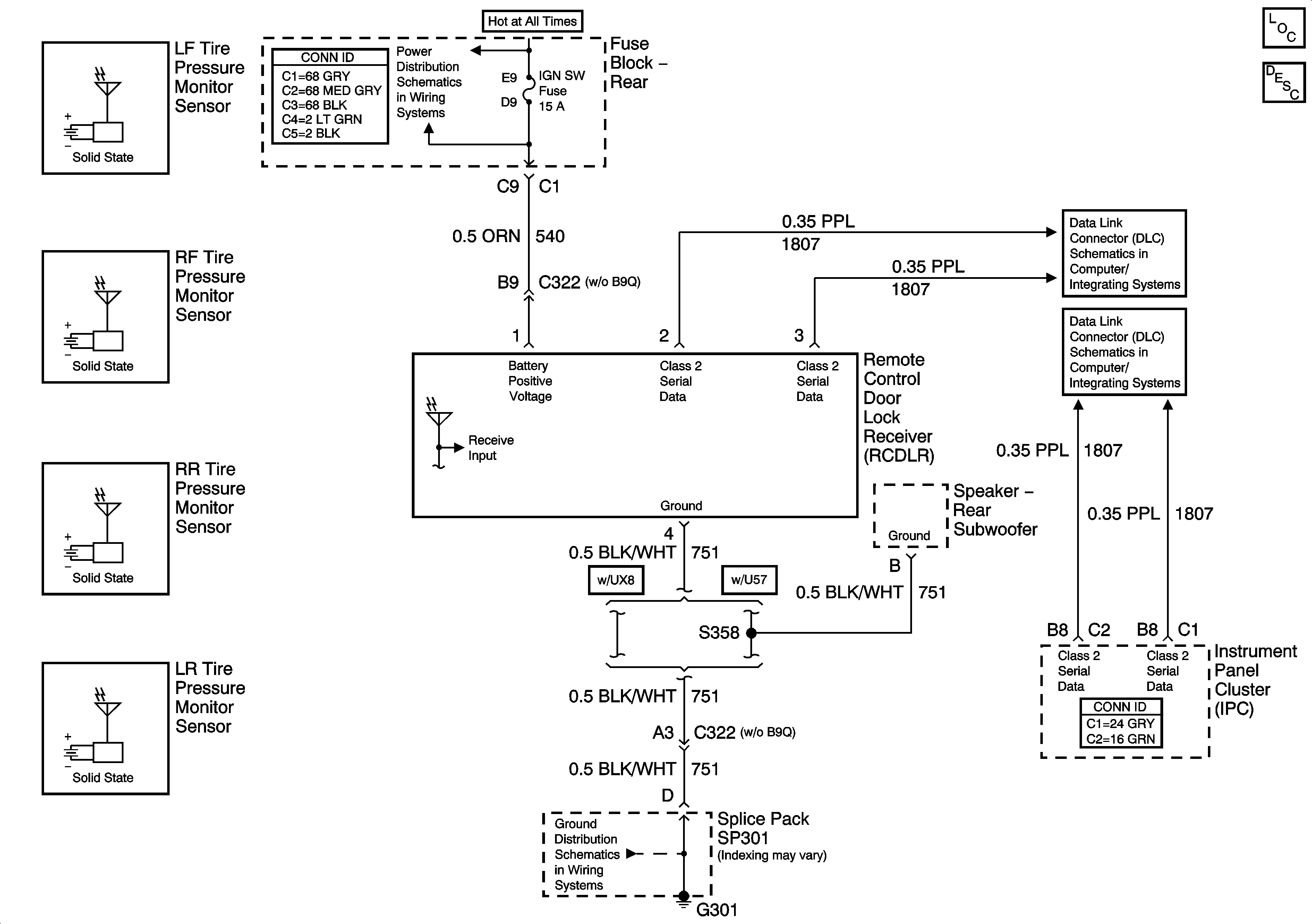

Tire Pressure Monitoring System Schematics for Cadillac DeVille 2005


Object Number: 1411428 Size: FS
Master Electrical Component List
Tire Pressure Monitor Description and Operation
RR BLO, RRDR MDL, HVAC BAT, STOP LP, IGN SW, and TSIG/HAZ Fuses
Class 2 Serial Data (3 of 3)
Class 2 Serial Data (1 of 3)
G301
