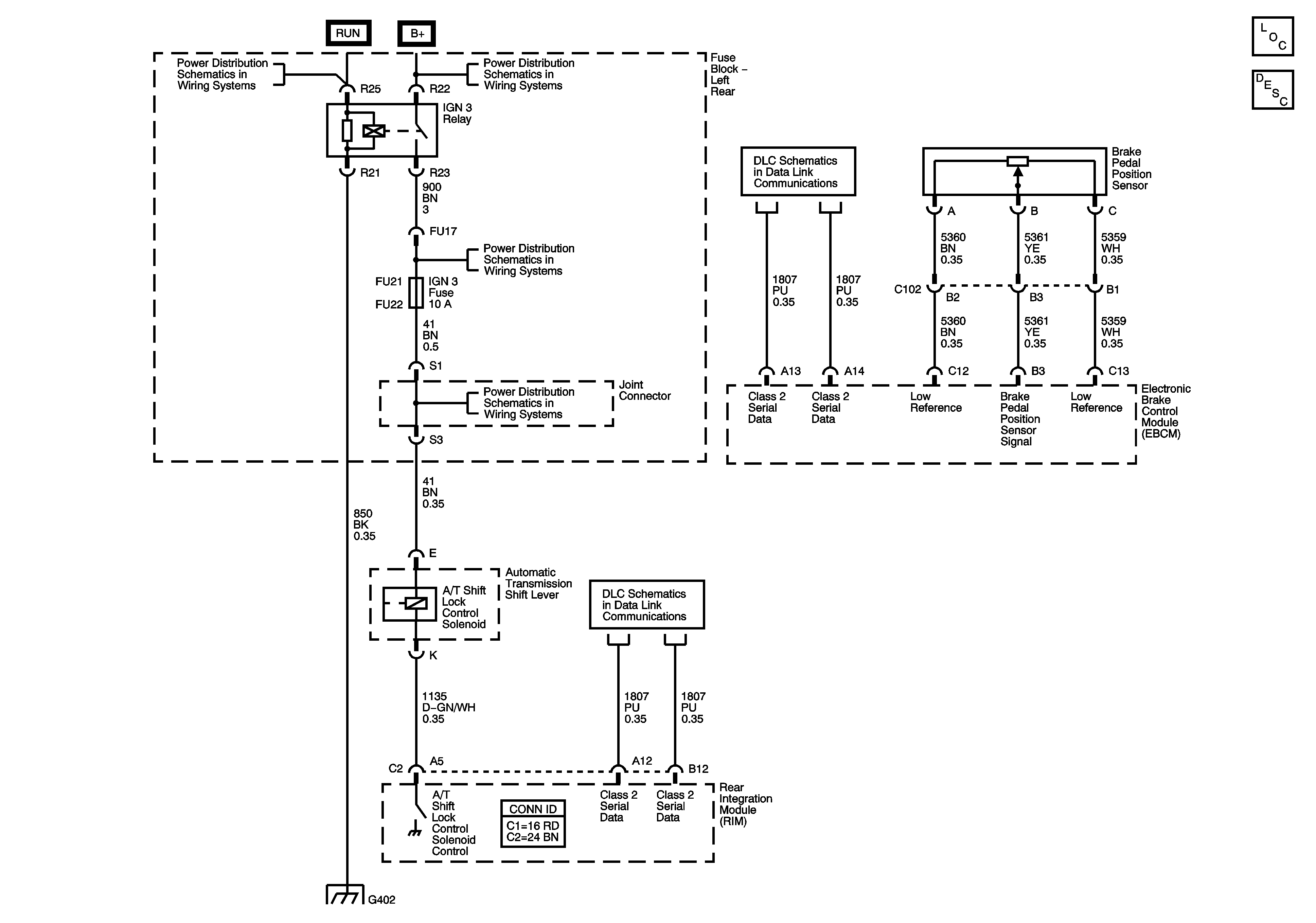

Shift Lock Control Schematic for Cadillac SRX 2004
Master Electrical Component List
Automatic Transmission Shift Lock Control Description and Operation
IGN SW Fuse and Ignition Switch - 1 of 2
Fuse Block - Left Rear B+ Bus
Class 2 Serial Data - 1 of 2
AIRBAG, CCP (RUN), EBCM (RUN), HDLP LEVELING, IGN 1, AND IGN 3 Fuses
AIRBAG, CCP (RUN), EBCM (RUN), HDLP LEVELING, IGN 1, AND IGN 3 Fuses
Class 2 Serial Data - 2 of 2
G402 - 1 of 2
