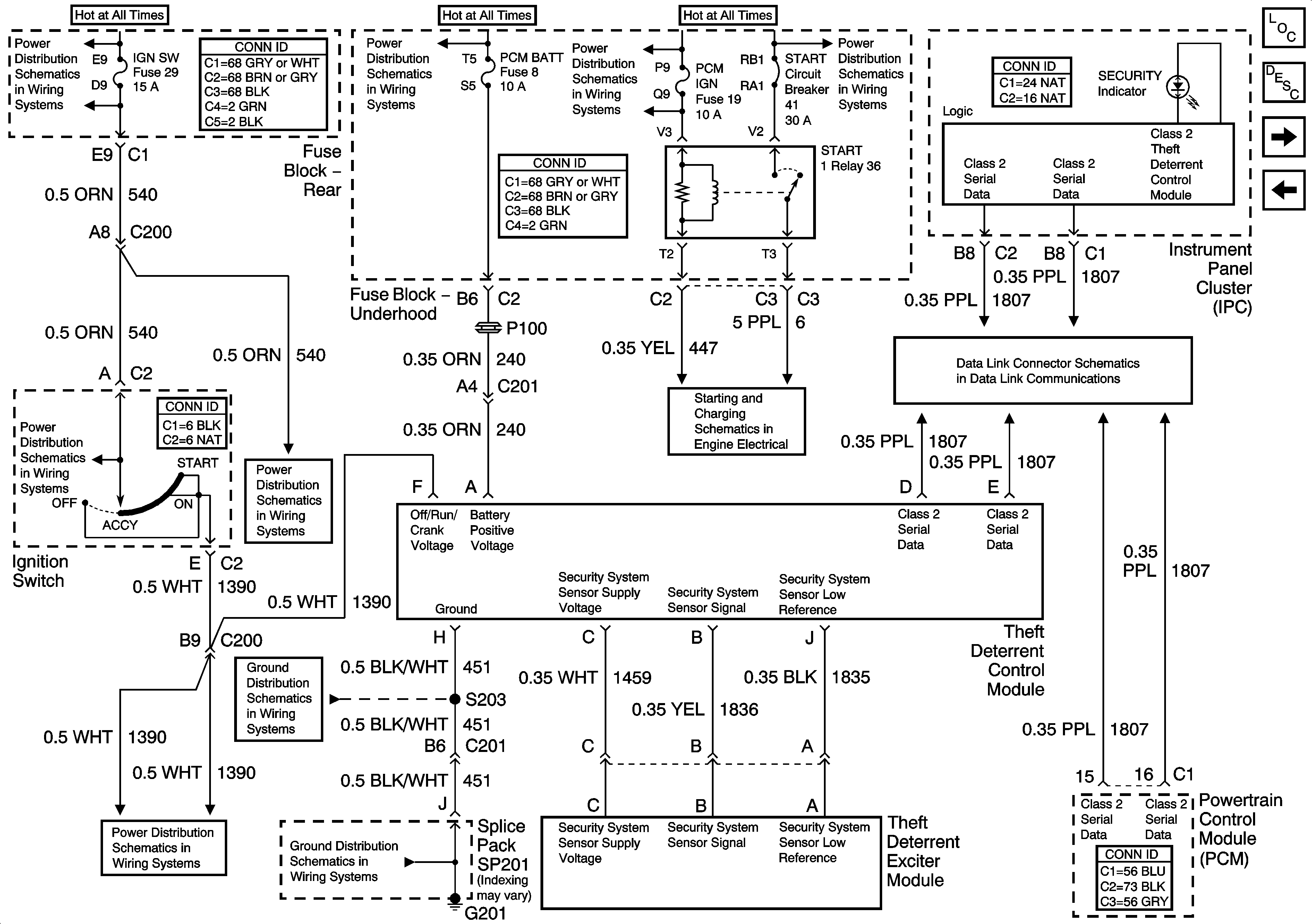

Theft Deterrent System Schematics-Vehicle Theft Deterrent (RH Drive) for Cadillac Seville 2004
Vehicle Theft Deterrent (VTD) System (RH Drive)
