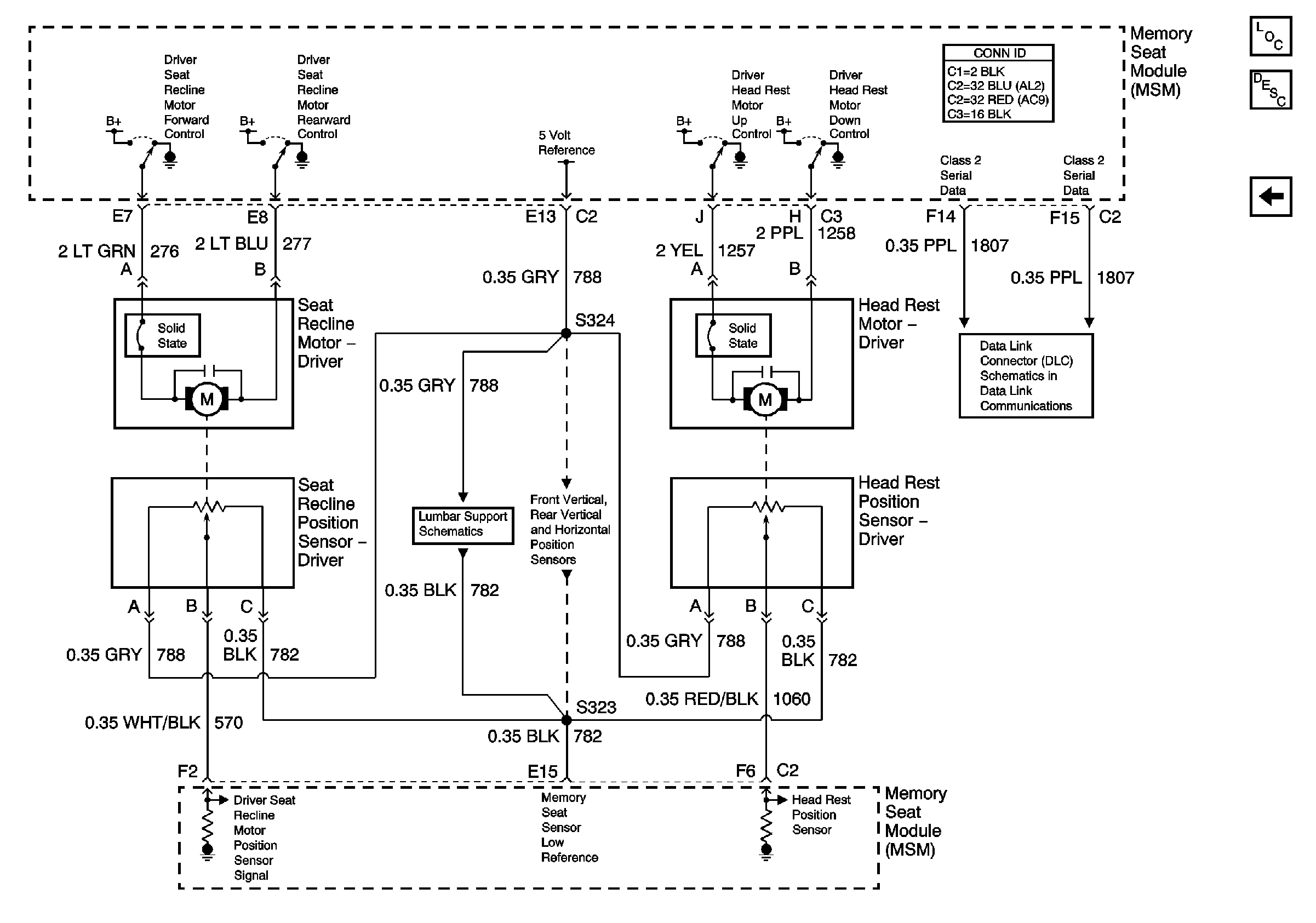

Memory Seats Schematics-Seat Recline and Headrest Motors, Position Sensors for Cadillac Seville 2004
Seat Recline and Headrest Motors and Position Sensors
