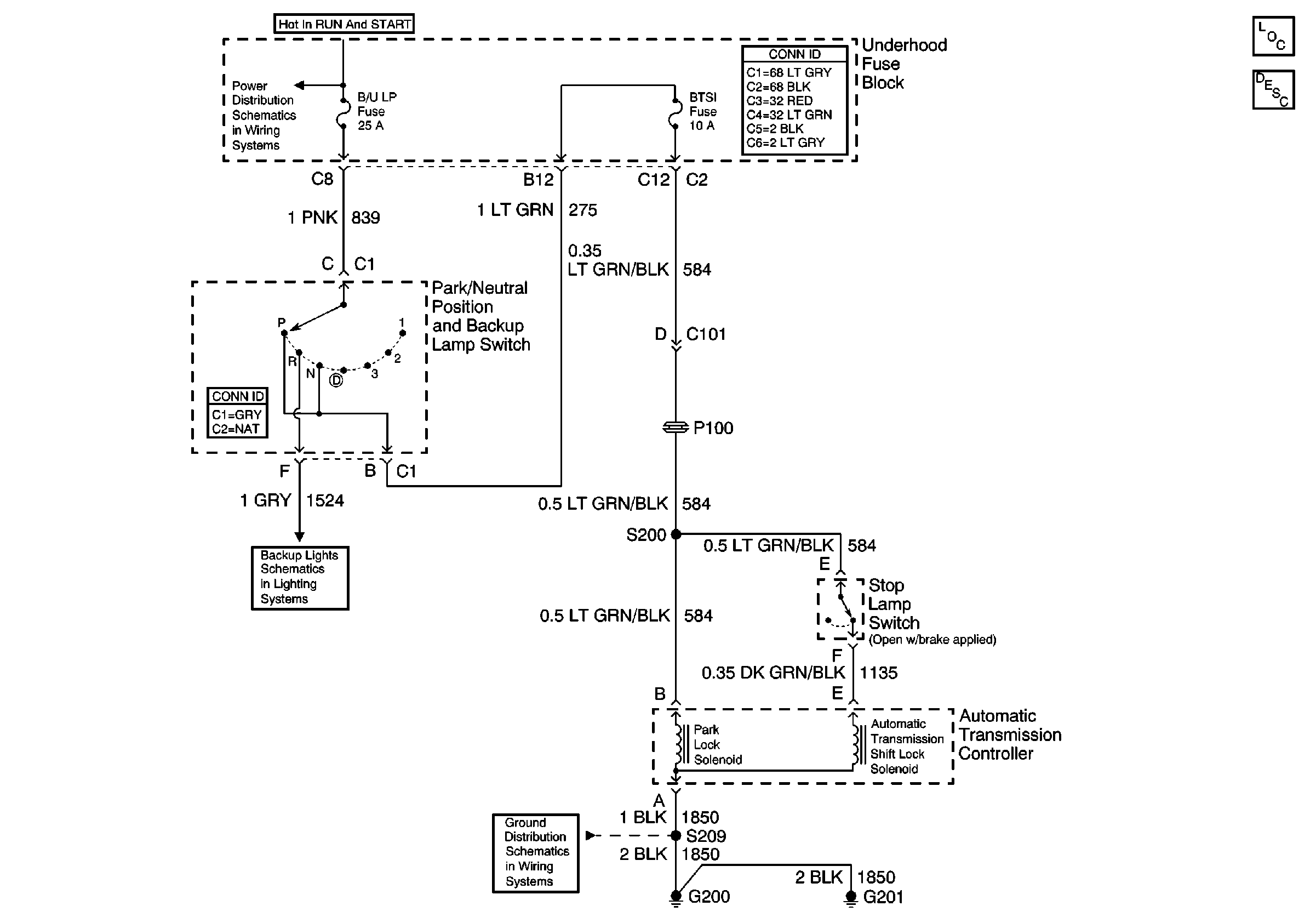

Shift Lock Control Schematics for Chevrolet Blazer - 4WD - RHD 2000


Object Number: 554225 Size: FS
Automatic Transmission Components
Transmission Component and System Description
Ign START, RUN and ACC Bus Bar
Power and Grounding Connector End Views
Backup Lights
G200 and G201
