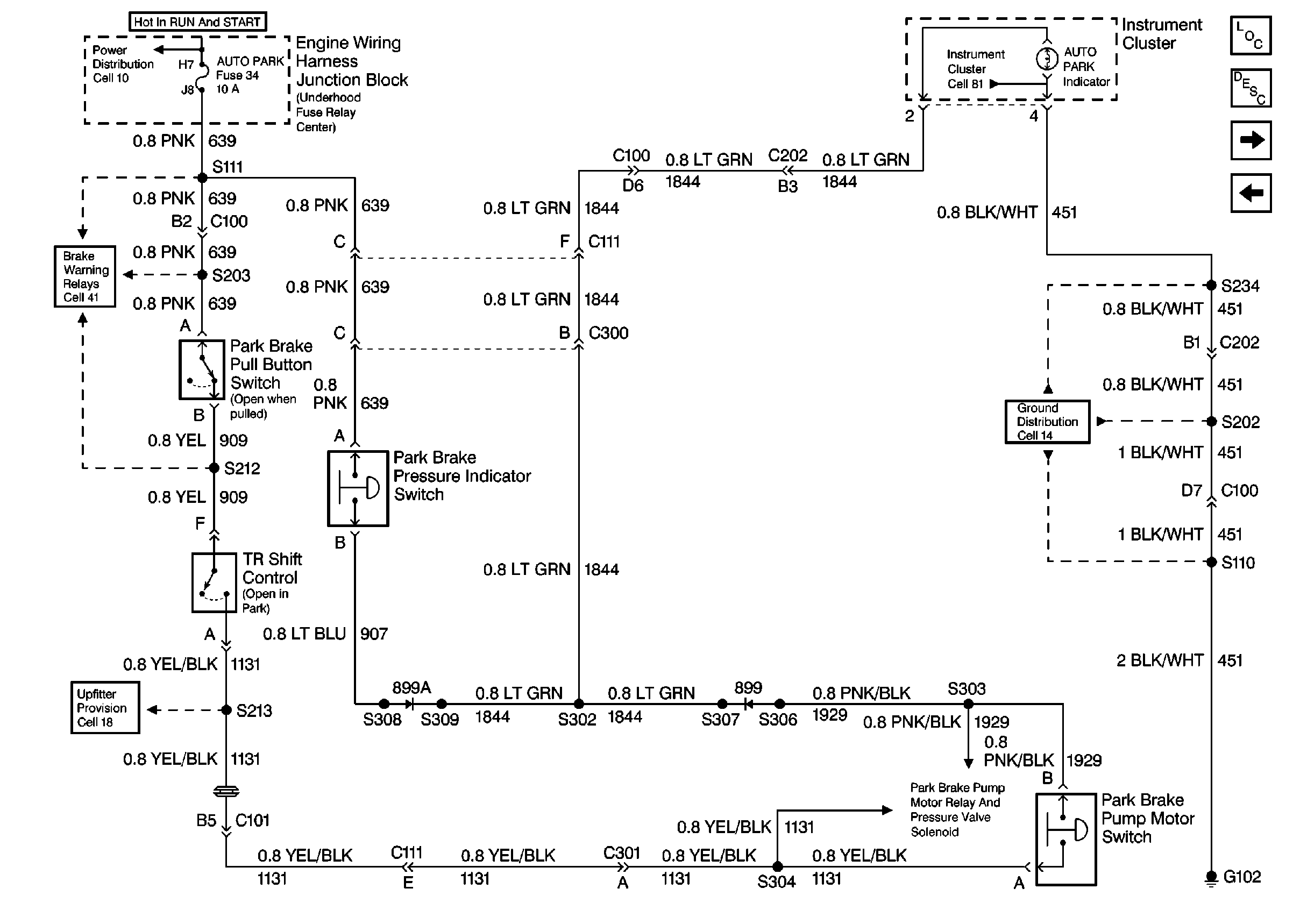

Cell 46: Indicator Lamp Circuit for Chevrolet Chevy P12 Chassis 1999
Cell 46: Indicator Lamp Circuit
