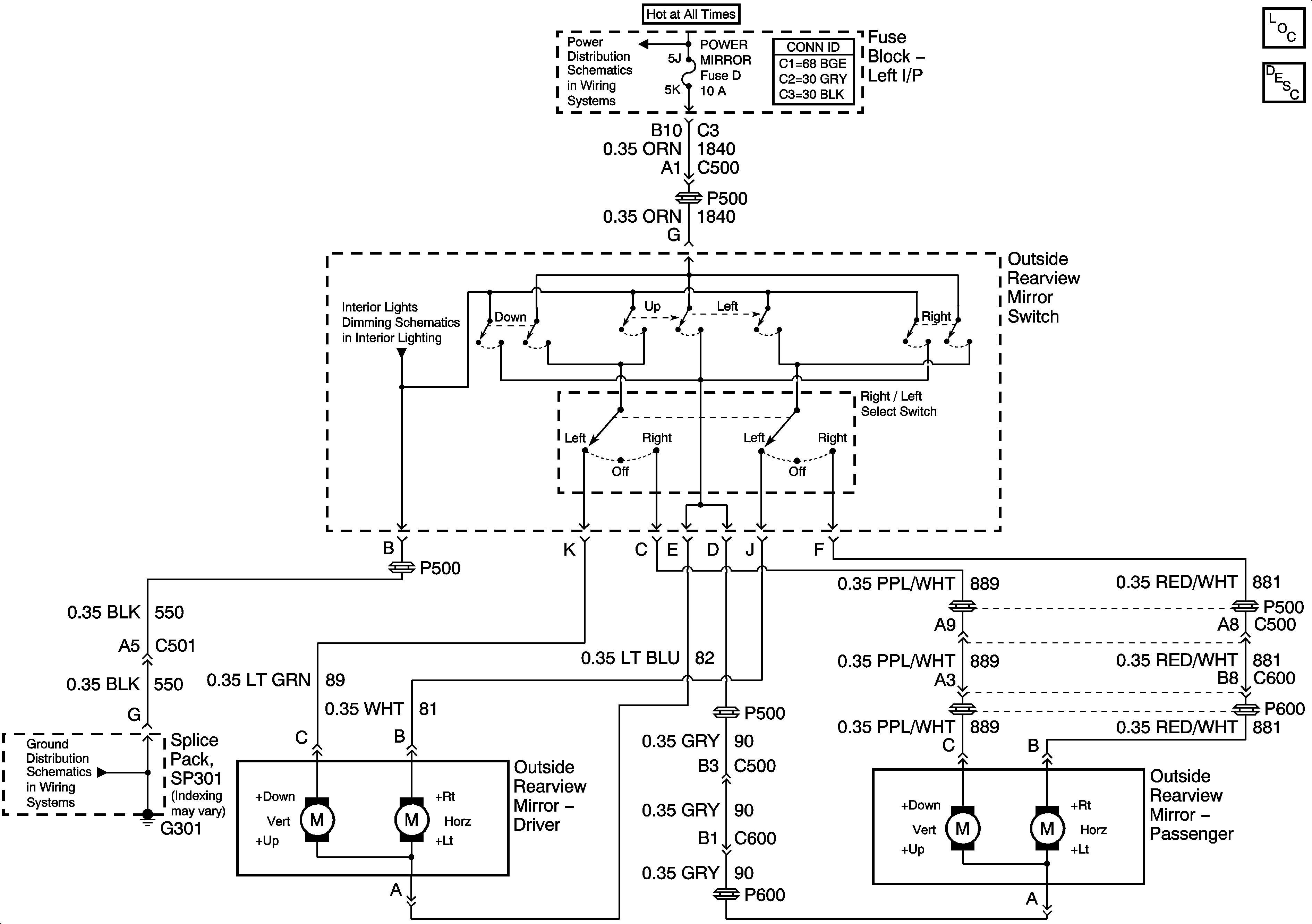

Outside Rearview Mirror Schematics for Chevrolet Classic 2005


Object Number: 783287 Size: FS
Master Electrical Component List
Outside Mirror Description and Operation
BATT 1, PWR Seat, PWR Mirror, DR Lock, Trunk Release/RFA
Door Dimming
SP301
