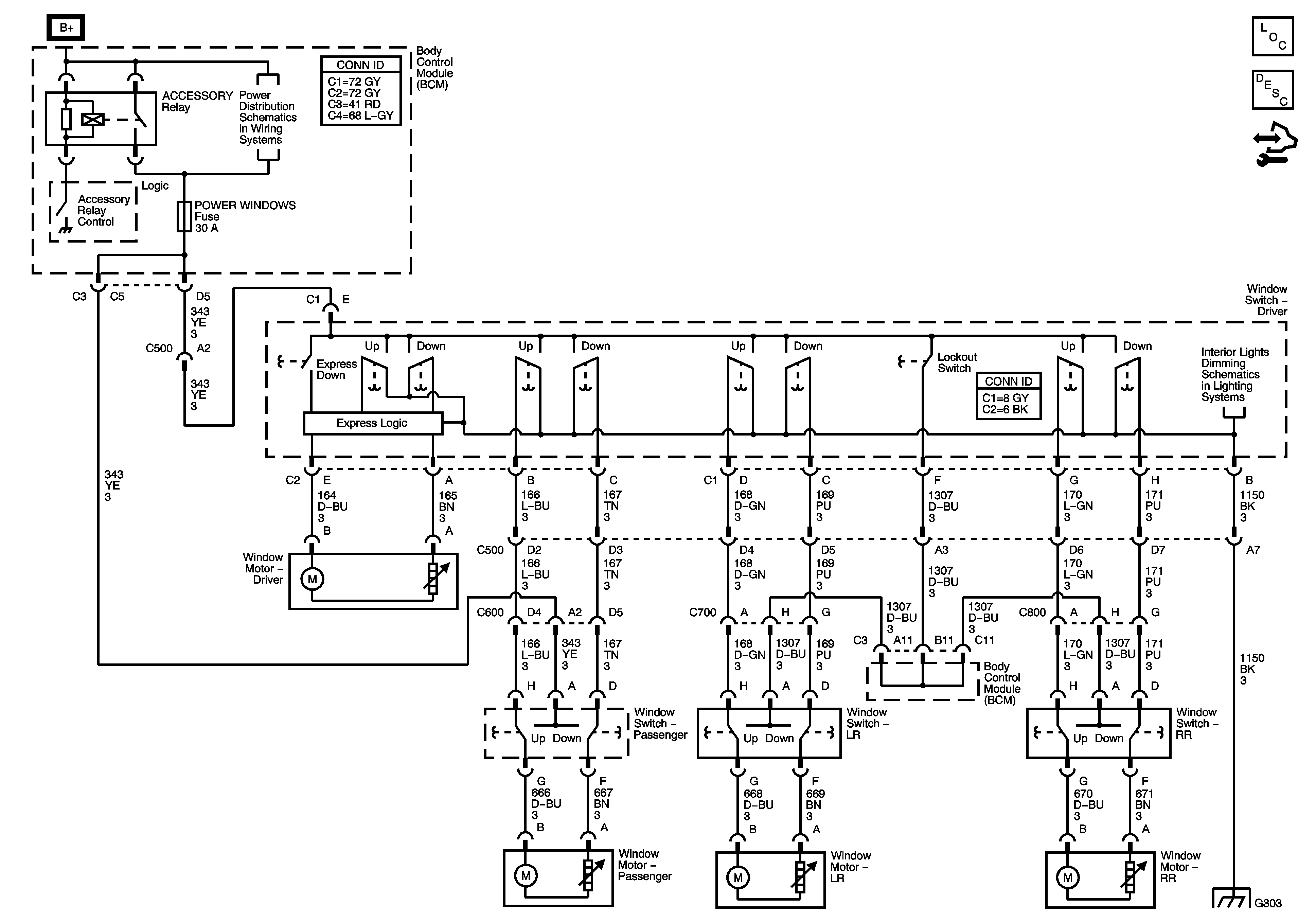

Power Window Schematics for Chevrolet Malibu 2005


Object Number: 1501095 Size: FS
Master Electrical Component List
Power Windows Description and Operation
Control Module References
Switches
Underhood Junction Block - ICBM Batt2, BCM - PWR Windows, Wiper Sw, Sunroof/HTD Seat Fuses
G303
