Makes 🢒 HUMMER 🢒 2005 🢒 H2 🢒 Vehicle Control Systems 🢒 Computer/Integrating Systems 🢒 Retained Accessory Power (RAP) Schematics

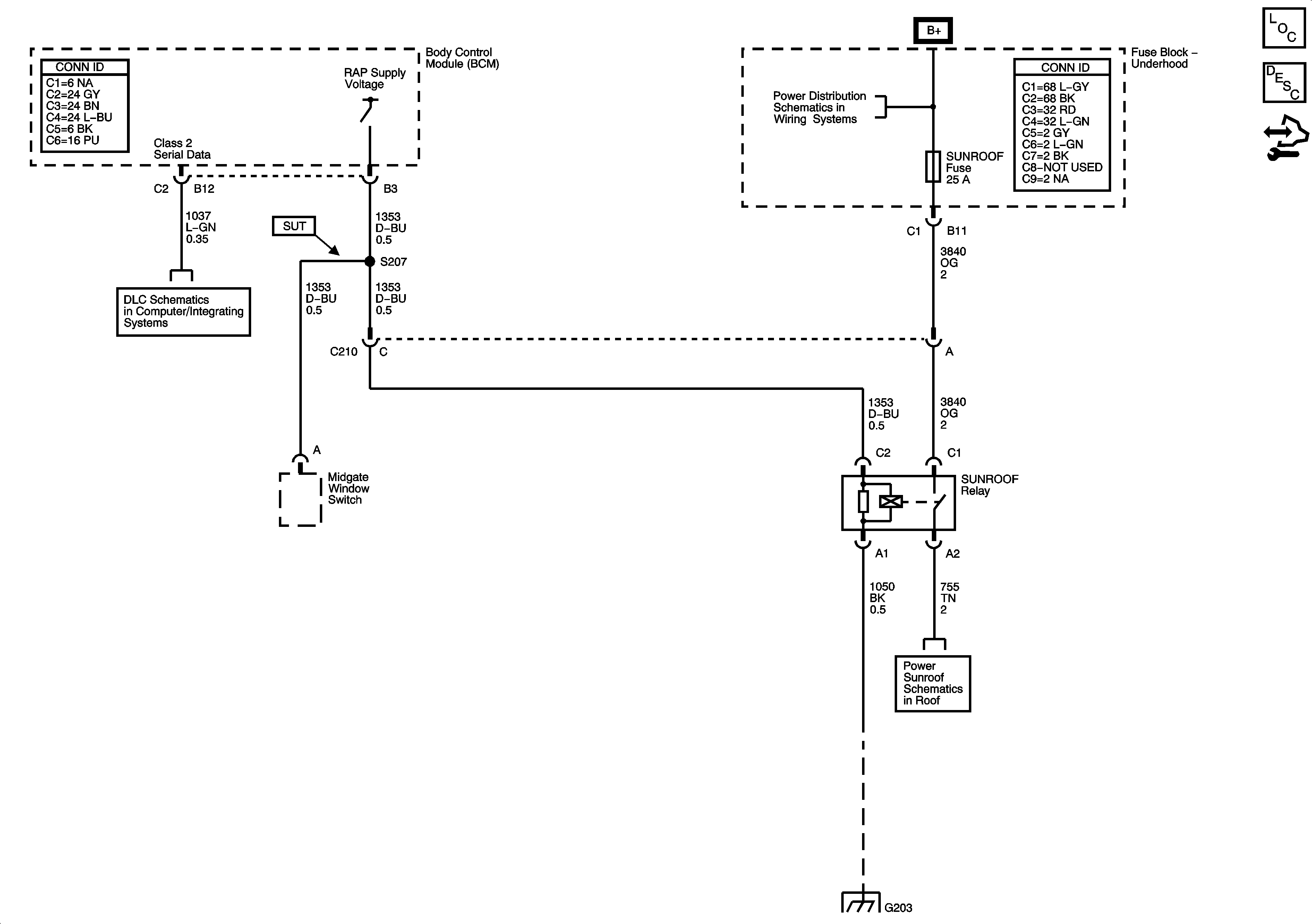

Retained Accessory Power (RAP) Schematics for HUMMER H2 2005

Object Number: 1507332 Size: FS

Master Electrical Component List
Retained Accessory Power (RAP) Description and Operation
B+Bus
Power, Ground, DLC, and Splice Pack SP205
Power Sunroof Schematics
CKT 1050: G203, S302, S303, S351, and S215
