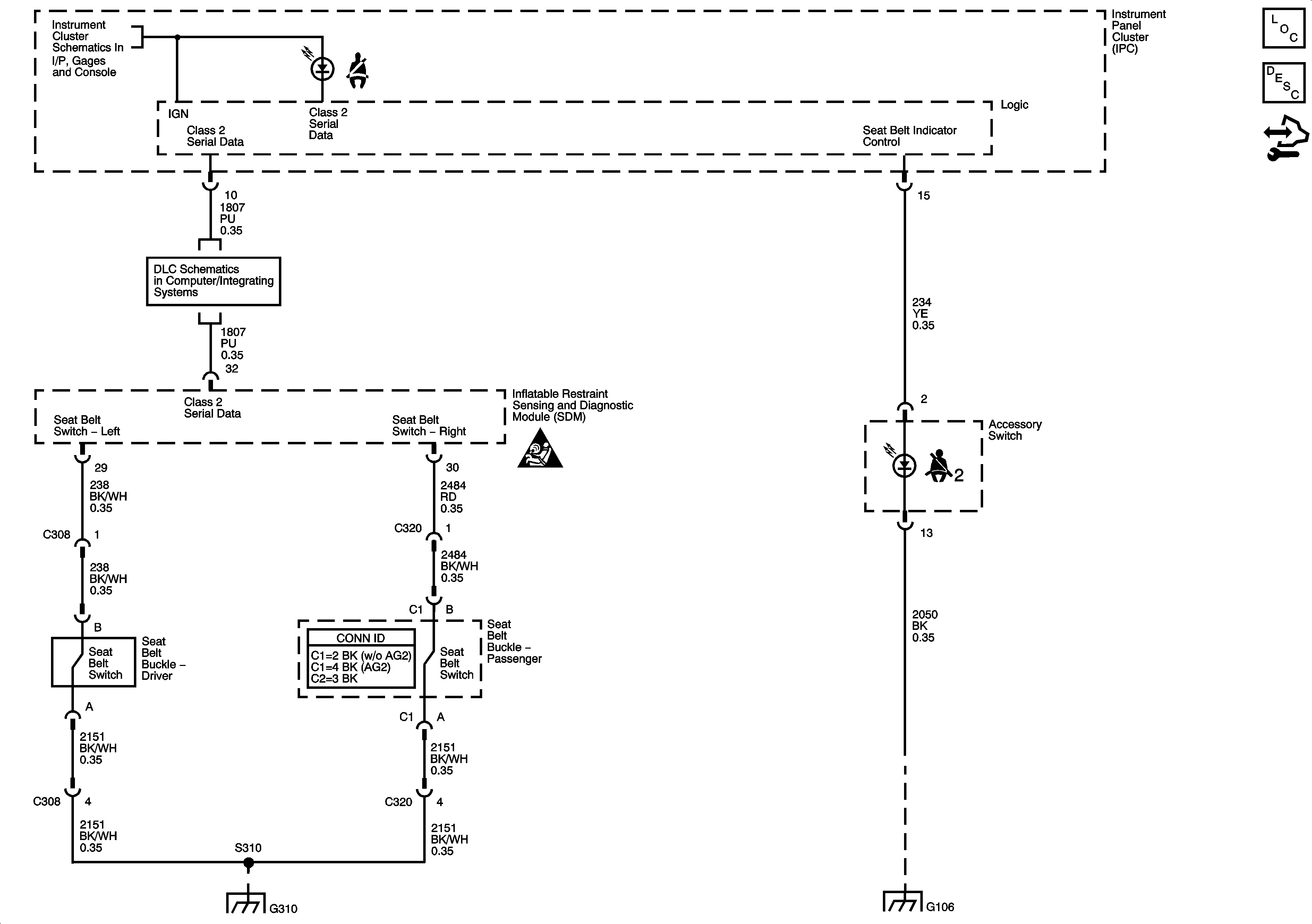

Seat Belt Schematics for HUMMER H3 2006

Object Number: 1566917 Size: FS

Master Electrical Component List
Seat Belt System Description and Operation
Control Module References
Indicators
Data Link Connector (DLC) Schematics
SIR Schematic Icons
G106
G300, G310, and G320
