2007
🢒
XLR
🢒
Suspension
🢒
Electronic Suspension Control
🢒 Electronic Suspension Control Schematics
Search

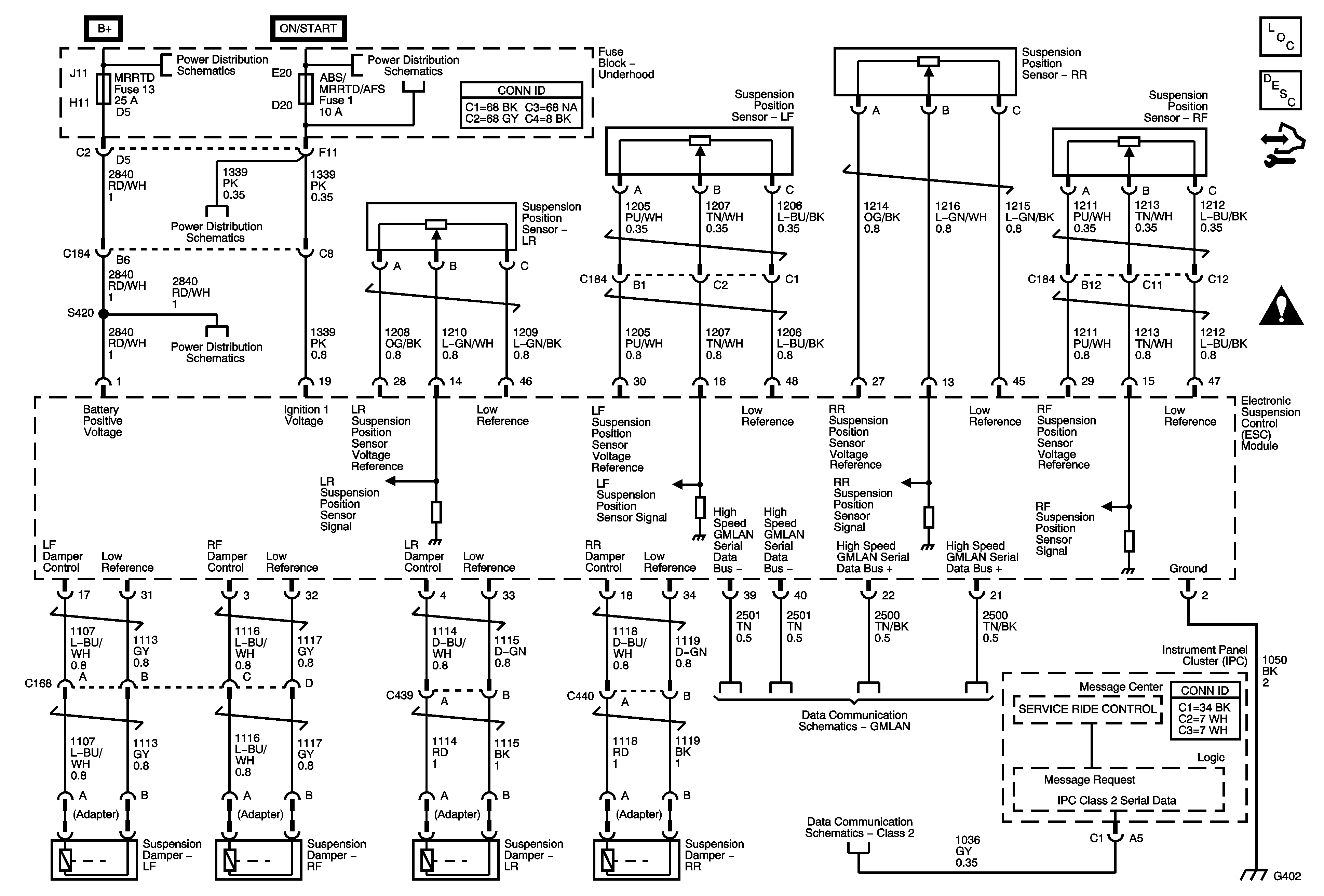

Electronic Suspension Control Schematics for Cadillac XLR 2007
Master Electrical Component List
Electronic Suspension Control Description and Operation
Control Module References
Electronic Suspension Control Schematic Icons
Fuse Block - Underhood Bussing
COOLFAN, AMP, HVAC, ABS, MRRTD, ECM/TCM, HORN, BATT 2 Fuses, and HORN, REAR DEFOG Relays
COOLFAN, AMP, HVAC, ABS, MRRTD, ECM/TCM, HORN, BATT 2 Fuses, and HORN, REAR DEFOG Relays
RPA/H/C SEAT, GMLAN DEVICES, ECM, SDM/PSIR SW, ACC/TCM, and ABS/MRRTD Fuses
RPA/H/C SEAT, GMLAN DEVICES, ECM, SDM/PSIR SW, ACC/TCM, and ABS/MRRTD Fuses
RPA/H/C SEAT, GMLAN DEVICES, ECM, SDM/PSIR SW, ACC/TCM, and ABS/MRRTD Fuses
GMLAN
Class 2
G302, G401, and G402
