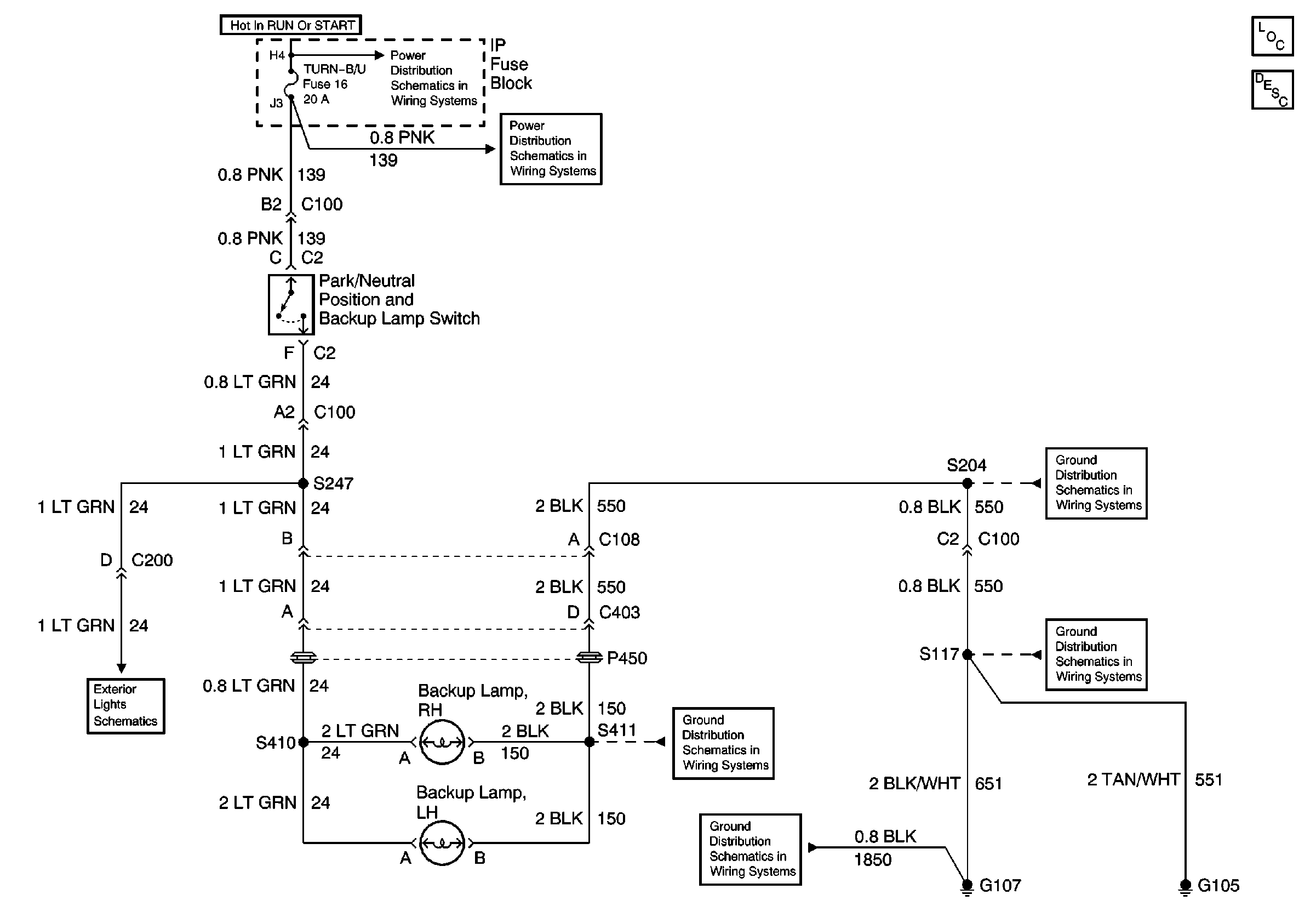

Back Up Lights Schematic (VE1) for Chevrolet Astro - 2WD 2000
Lighting Systems Components
Backup Lamp Circuit Description VE1
IGN-A Fuse and Ignition Switch
GAUGES Fuse 4, AIR BAG Fuse 10 and TURN-B/U Fuse 16
Trailer Wiring Harness Connections
G105 and G107
G105 and G107
G105 and G107
G105 and G107
