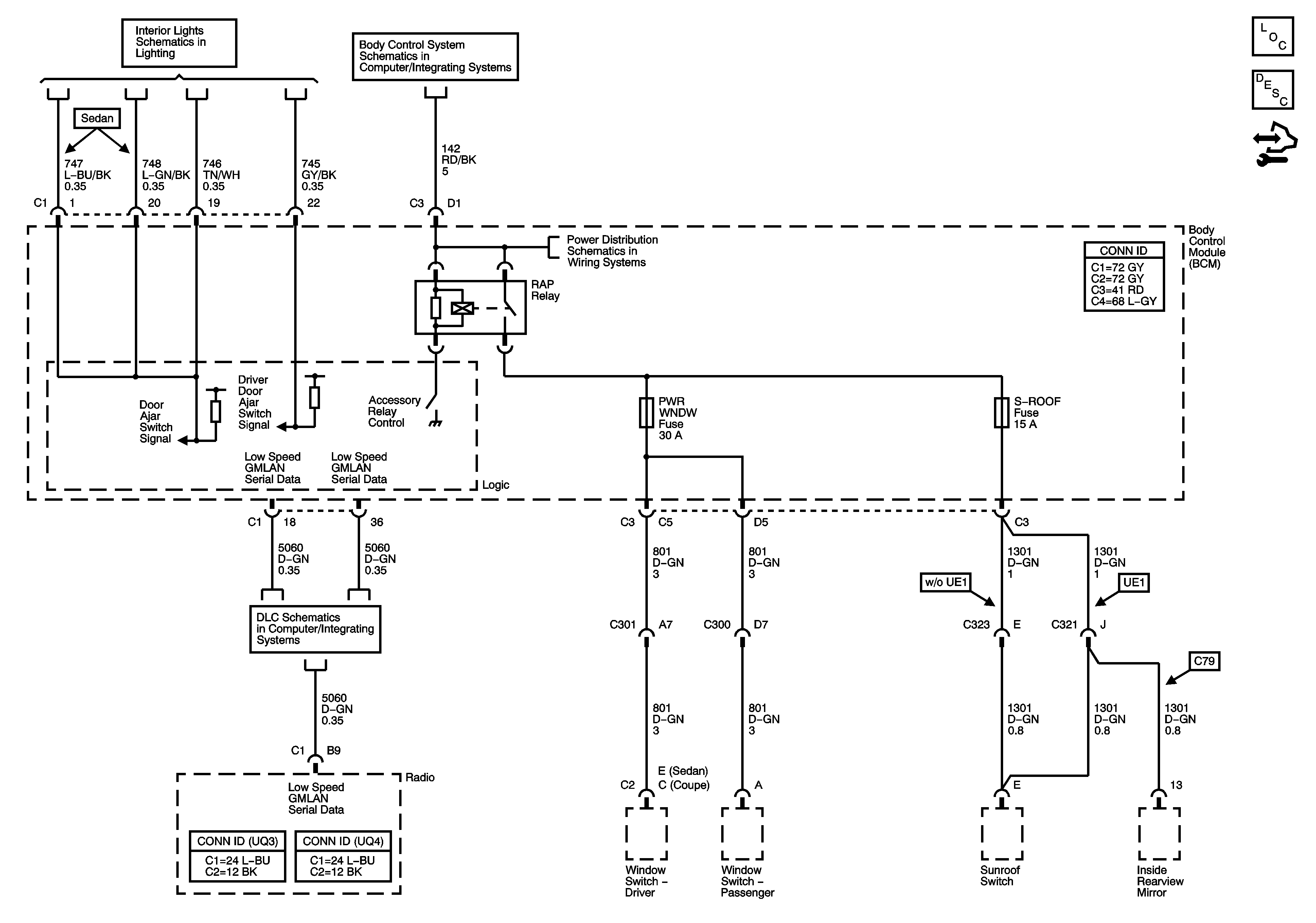

Retained Accessory Power (RAP) Schematics for Chevrolet Cobalt 2005
Master Electrical Component List
Retained Accessory Power (RAP) Description and Operation
Control Module References
Interior Lights Inputs
RUN/CRANK, RAP HVAC Relays, BCM 3, POWER WINDOWS, and SUNROOF Fuses
RDO Fuse, DR LCK Fuse, INT LIGHTS Fuse, PWR WNDW Fuse, S ROOF Fuse, ECM/TCM Fuse, SDM Fuse, RAP Relay, INTERIOR LAMPS PCB Relay, Door Lock PCB Relays
DLC Power, Ground, and Low Speed GMLAN
