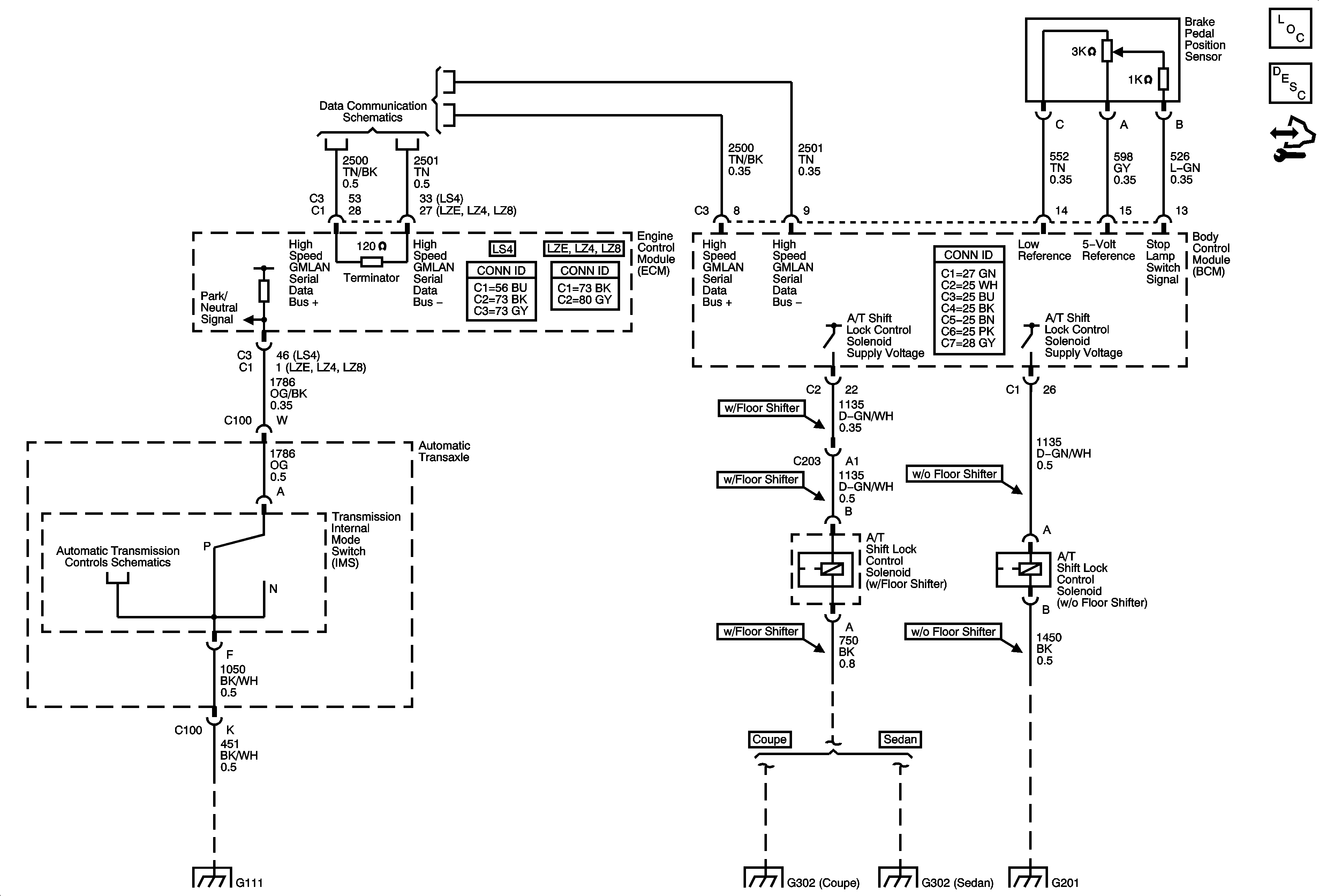

Shift Lock Control Schematics for Chevrolet Impala 2007

Object Number: 1760977 Size: FS

Master Electrical Component List
Automatic Transmission Shift Lock Control Description and Operation (Floor Shift)
Control Module References
High Speed GMLAN Serial Data
PRNDL and IMS Switch
G101, G102, and G111
G302 (Coupe)
G302 (Sedan)
G201
